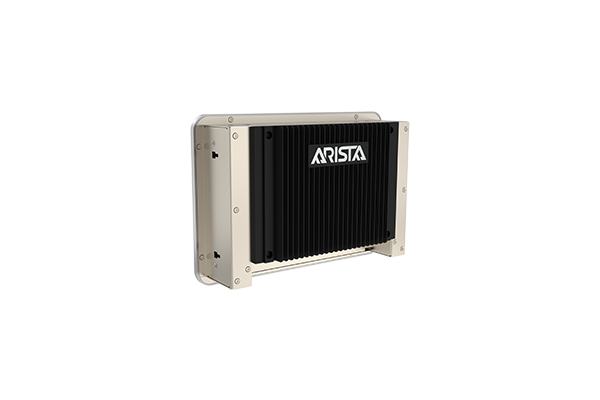

ARP-3811AP
Panel Mount Panel PC with 10.1 inch PCAP Touch Screen
Description：
- 10.1" LCD, 1280 x 800 Resolution
- Projected Capacitive Touch Screen
- Aluminum or 316L Stainless-Steel Flush Bezel
- Intel N200/i3-N305 CPU, Up to 16GB DDR4
- Optional 2.5" SSD, M.2 NVMe SSD

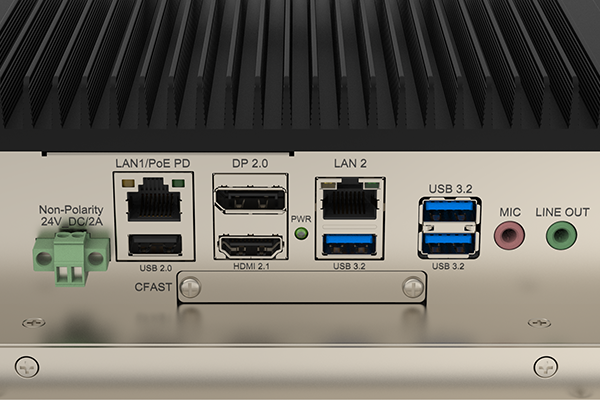

- 1 x 2.5G, 1 x 1G Ethernet
- 3 x USB 3.2, 1 x USB 2.0 ports
- Powered By 802.3bt PoE Option
- Powered By DC 24V Input
Please refer to ordering information for the specific configurations for your applications.
-
Specifications ARP-3811AP K01 LCD Display Display Size (Diagonal) 10.1 inch Resolution 1280 x 800 Backlight Lifetime (Hours) 50,000 hours Visual Characteristics Colors 16.2 million Aspect ratio 16:10 Viewing angle (V/H) 170° / 170° Contrast ratio 1300:1 Brightness 500 nits (Typical) Touchscreen Technology Projected Capacitive Interface USB Driver Windows 10, 11, Ubuntu Front Bezel NEMA 4 Aluminum NEMA 4x 316L Stainless Steel (Optional) System CPU Intel N200, i3-N305 CPU Chipset Alder Lake Memory Up to 16GB DDR4 SO-DIMM Video Controller - - External Video Output DP, HDMI Storage Option 2.5" SSD, NVMe SSD (M.2 2280) Compact Flash Optional Keyboard / Mouse USB Audio Line Out, Mic Watchdog Timer YES Remote Boot - - Expansion Slot M.2 1630 I/O Communication USB Port 3 x USB 3.2, 1 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x 2.5GB, 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support Windows 10, 11, Ubuntu Power/Thermal Specs Power Requirement (Max) DC 24V@1.0A / 802.3bt PoE Power Consumption (Max) 23W Recommended Power Supply 30W Heat Dissipation 72 BTU/hr Physical Information Mounting Panel Mount Net Weight - - Dimension (W x H x D) 10.63 x 7.39 x 3.28 inch
270 x 187.6 x 83.4 mmEnvironmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Bezel meets NEMA 4/4X requirement Certification - - -
Ordering Information ARP-3811AP-K01-031-300 ARP-3811AP-K01-035-300 LCD Display 10.1" LCD / 1280 x 800 10.1" LCD / 1280 x 800 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply 72W DIN Rail Power Supply 72W DIN Rail Power Supply Ordering Information ARP-3811AP-K01-A30-300 ARP-3811AP-K01-A34-300 LCD Display 10.1" LCD / 1280 x 800 10.1" LCD / 1280 x 800 Touch Screen Projected Capacitive Projected Capacitive Bezel Black Powder Coated Aluminum 316L Stainless Steel CPU i3-N305 i3-N305 Memory 16GB DDR4 16GB DDR4 Storage 2.5" SATA SSD 2.5" SATA SSD Remote Boot N/A N/A Power Supply Powered By 802.3 PoE Powered By 802.3 PoE ARP-3800AP Series stainless Steel front bezel is made of 316L Stainless Steel and corrosion free against Cleaning Agents and Solvents used in Pharmaceutical industry listed below:
- Isopropyl alcohol:Used for cleaning equipment and surfaces due to robust decreasing and disinfection properties.
- Hydrogen peroxide (50% and 100%): Used for cleaning and disinfection, as well as the removal of microorganisms in aseptic environments.
- Acetone: Used for removing residues insoluble in water. This product is ideal for equipment cleansing.
- Ethanol: A common disinfectant frequently used for decontaminating surfaces and equipment.
- Citric acid: Used for cleaning stainless steel equipment, removing mineral deposits, and cleansing surfaces.
- Sodium bicarbonate: Used for cleaning sensitive surfaces and equipment where more abrasive agents may cause damage.
-
Document Datasheet 2D Line Drawing User Manual Coming soon PDF N/A Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN
Brochure Brochure Brochure Datasheet Flyer Pharma Manufacturing Industrial Thin Client Industrial KVM Extender Powered by PoE Series Industrial KVM Extender
Download Download Download Download Download Datasheet Datasheet Datasheet Datasheet Datasheet ARP-1700AP Series ARP-2200AP Series ARP-2900AP Series ARP-3600AP Series ARP-3700AP Series
Download Download Download Download Download
Datasheet Datasheet Datasheet Datasheet Datasheet ARP-3800AP Series ARP-3800BP Series C1D2 Series Powered by PoE Series Waterproof Series
Download Download Download Download Download
-
Packing List Item QTY Description PIC AR02045 13 Panel Mount Hanger with Screw
AR06307 5 Panel Mount Bracket with Screw
APS-DR1072F-24 1 72W DIN-Rail Power Supply (AC DIN-Rail Version Only)
Accessories Options Item QTY Description PIC CB001 1 6 Feet M-M VGA Cable
CA521 1 6 FEET M-M HDMI Cable with M3 Lock Screw
BAT-01 1 2800mAh Rechargeable Smart Battery
-
