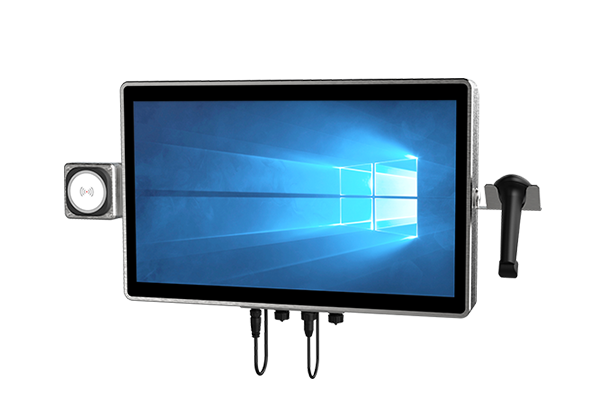

ARP-3824AX-E01-A06
NEMA 4X / IP66 Waterproof Thin Client Panel PC with 24-inch PCAP Touch Screen Powered by PoE 802.3bt Type 3/4
Description：
- 24" LCD, 1920 x 1080 Resolution
- Projected Capacitive Touch
- 316L Stainless Steel Enclosure
- Meets NEMA 4X / IP66 requirements
- Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU
- 4GB DDR3 SO-DIMM
- 1x Gigabit Ethernet
- 2x USB 2.0 ports
- Powered by PoE 802.3bt Type 3/4
-
Specifications ARP-3824AX-E01-A06 LCD Display Display Size 24 inch Max Resolution 1920 x 1080 Backlight Lifetime 50,000 hours Visual Characteristics Colors 16.7 million Aspect Ratio 16:9 Viewing Angle (V/H) 178° / 178° Contrast Ratio 5000 : 1 Brightness 250 nits Touchscreen Technology Projected Capacitive Interface USB Driver ThinManager Supported Driver Enclosure NEMA 4 N/A NEMA 4X 316L Stainless Steel System CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz Chipset Bay Trail Memory 4GB DDR3 SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL 3.2 External Video Output N/A Storage Option N/A Compact Flash N/A Keyboard / Mouse USB Audio N/A Watchdog Timer Programmable 1 – 255 sec Remote Boot ThinManager Ready, PXE Expansion Slot N/A I/O Communication USB Port 2 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support N/A Power/Thermal Specs Power Requirement (Max) Powered by PoE 802.3bt Type 3/4 Power Consumption (Max) 60W Recommended Power Supply 85W Heat Dissipation 203 BTU/hr Physical Information Mounting Pedestal, VESA, Wall mount, Benchtop Net Weight 34 lbs / 15.5 kg Dimension (W x H x D) 22.61 x 14.06 x 3.55 inch Dimension (W x H x D) 574.2 x 357.2 x 90.2 mm Environmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Meets NEMA 4X / IP66 Certification N/A -
Ordering Info ARP-3824AX-E01-A06 LCD Display 24" LCD / 1920 × 1080 Touch Screen Projected Capacitive Enclosure 316L Stainless Steel CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz Memory 4 GB DDR3 Storage N/A Remote Boot ThinManager Ready Power Supply Powered by PoE 802.3bt (PoE Injector can be ordered separately) -
Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN -
Packing List Item QTY Description PIC CA260A 1 10 Feet 4PIN Waterproof DC Cable
CA298 1 6 Feet Waterproof RJ45 Cable
Accessories Options Item QTY Description PIC CA648 1 3 Feet Type A Male Waterproof USB Cable
APOE-60E-BT PoE Injector 1 Supplies PoE (15.4W), PoE+ (30W), or PoE++ (65W)
Mounting Options Item QTY Description PIC XMM-001-AX01 1 Machine Top Pendent Arm
XWM-005-AX01 1 Wall Mount Pendent Arm
XWM-KB-115-02 1 Wall Mount Foldable Bracket
XDS-000 1 Benchtop Stand for ADM-5800AX/ARP-5500AX/ARP-3800AX
XTM-001 1 Pedestal Mount
XVM-001 1 VESA Mount
XTM-001 + XTM-003 1 Pedestal Stand with Bracket
-
Specifications
Specifications ARP-3824AX-E01-A06 LCD Display Display Size 24 inch Max Resolution 1920 x 1080 Backlight Lifetime 50,000 hours Visual Characteristics Colors 16.7 million Aspect Ratio 16:9 Viewing Angle (V/H) 178° / 178° Contrast Ratio 5000 : 1 Brightness 250 nits Touchscreen Technology Projected Capacitive Interface USB Driver ThinManager Supported Driver Enclosure NEMA 4 N/A NEMA 4X 316L Stainless Steel System CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz Chipset Bay Trail Memory 4GB DDR3 SO-DIMM Video Controller Intel Gen7 Intel Graphics DX 11, OGL 3.2 External Video Output N/A Storage Option N/A Compact Flash N/A Keyboard / Mouse USB Audio N/A Watchdog Timer Programmable 1 – 255 sec Remote Boot ThinManager Ready, PXE Expansion Slot N/A I/O Communication USB Port 2 x USB 2.0 Serial Port N/A IEEE 1394 N/A LAN 1 x Gigabit Parallel N/A GPIO N/A Smart Battery External Smart Battery N/A OS Support OS Support N/A Power/Thermal Specs Power Requirement (Max) Powered by PoE 802.3bt Type 3/4 Power Consumption (Max) 60W Recommended Power Supply 85W Heat Dissipation 203 BTU/hr Physical Information Mounting Pedestal, VESA, Wall mount, Benchtop Net Weight 34 lbs / 15.5 kg Dimension (W x H x D) 22.61 x 14.06 x 3.55 inch Dimension (W x H x D) 574.2 x 357.2 x 90.2 mm Environmental Operating Temperature 0~50°C (32~122°F) Storage Temperature -20~60°C (-4~140°F) Relative Humidity 0~95% Compliance IP/NEMA Rating Meets NEMA 4X / IP66 Certification N/A -
Ordering Information
Ordering Info ARP-3824AX-E01-A06 LCD Display 24" LCD / 1920 × 1080 Touch Screen Projected Capacitive Enclosure 316L Stainless Steel CPU Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz Memory 4 GB DDR3 Storage N/A Remote Boot ThinManager Ready Power Supply Powered by PoE 802.3bt (PoE Injector can be ordered separately) -
Download
Driver Win 10 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 10 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (64bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 8.1 (32bit) Graphic Intel Trust Engine Intel MBI -- Chipset -- Win 7 (64bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN Win 7 (32bit) Graphic Intel Trust Engine -- USB 3.0 Chipset LAN -
Accessories
Packing List Item QTY Description PIC CA260A 1 10 Feet 4PIN Waterproof DC Cable CA298 1 6 Feet Waterproof RJ45 Cable Accessories Options Item QTY Description PIC CA648 1 3 Feet Type A Male Waterproof USB Cable APOE-60E-BT PoE Injector 1 Supplies PoE (15.4W), PoE+ (30W), or PoE++ (65W) Mounting Options Item QTY Description PIC XMM-001-AX01 1 Machine Top Pendent Arm XWM-005-AX01 1 Wall Mount Pendent Arm XWM-KB-115-02 1 Wall Mount Foldable Bracket XDS-000 1 Benchtop Stand for ADM-5800AX/ARP-5500AX/ARP-3800AX XTM-001 1 Pedestal Mount XVM-001 1 VESA Mount XTM-001 + XTM-003 1 Pedestal Stand with Bracket
